Longitudinal joints to partially replace or extend beams at the threshold or top plate

The following guide shows how beams can be connected by longitudinal joints as part of a renovation. Portable circular saws, cordless drills and eccentric sanders are used to do this. One of the longitudinal joints created by carpenters, the French scarf joint, is primarily used to partially replace damaged wood in old buildings or to extend wood.

    Description

    With the right tool, longitudinal joints can be used to connect beams. When it comes to partially replacing wood in old buildings, it goes without saying that the precise procedure for making longitudinal joints very much depends on the local conditions, space available and wood cross-sections. This guide presents the scenario of a renovation project. The guide explains precisely what steps are required to make a longitudinal joint, from cutting to cogging and fitting the threaded bolts. In the main, various portable circular saws are used.

    Material list

    • 12 x 20 cm wood
    • Threaded rods or threaded bolts

    Tools/accessories

    Preparation/set-up

    • Marking wood

      Before you can connect the beams with a longitudinal joint, the beams must first be marked. The design of the French scarf joint is based on the thickness of the wood. A length of three times the wood thickness was chosen for the scarf joint. The cogging depth was set at 3 cm.

      +
      Marking wood

    Procedure

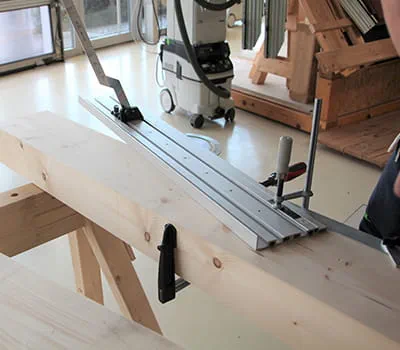

    • Fixing the guide rail to make a longitudinal joint

      If the angle stop is aligned, it can be fixed with fastening clamps.

      +
      Fixing the guide rail

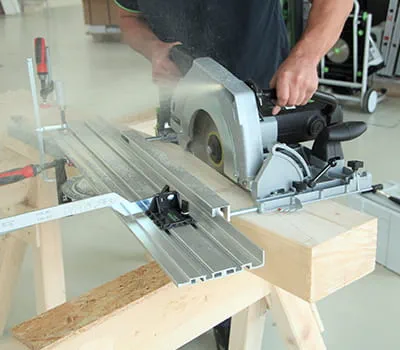

    • Cutting with the portable circular saw

      The portable circular saw can now be used for cutting. Repeat the process for the counterpart.

      +
      Cutting with the portable circular saw

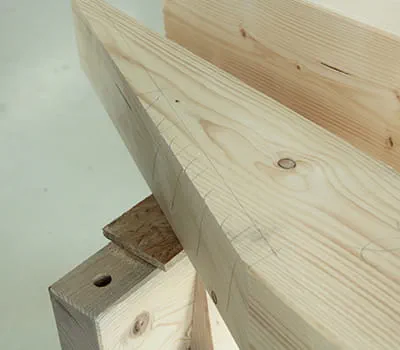

    • Completing the longitudinal section

      Finished section

      +
      Finished section
    • Cogging

      To cog a joint, you must first make incisions on the limit line. This is very easy with the portable circular saw when used in conjunction with the cross cutting guide rail. To do this, set the cutting depth accordingly, position it on the crack and make cuts.

      +
      Cogging
    • Cogging

      Making a cut on the central axis

      +
      Cogging

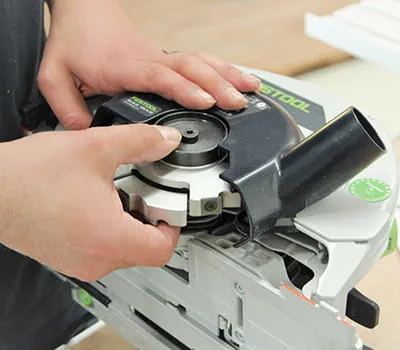

    • Fitting the adjustable groove cutter into the portable circular saw

      The adjustable groove cutter can be used to quickly smooth the central area of the clogging. To do this, the saw blade must be removed and the adjustable groove cutter must be fitted in accordance with the operating instructions. In this example, a maximum routing width of 25 mm has been chosen.

      +
      Fitting the adjustable groove cutter into the portable circular saw
    • Routing the cogging

      After the routing depth has been adjusted, the cogging can now be routed in conjunction with the cross cutting guide rail. When the joints are visible at a later stage, it is recommended that you pretension a test piece of wood to ensure that the crack is minimal.

      +
      Routing the cogging

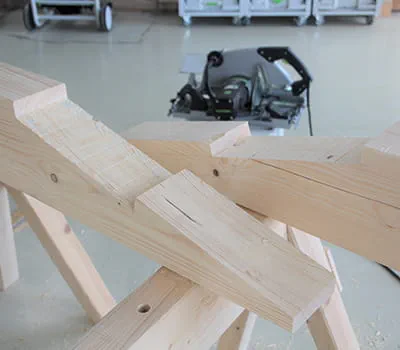

    • Completing the cogging

      Finished cogging

      +
      Finished cogging

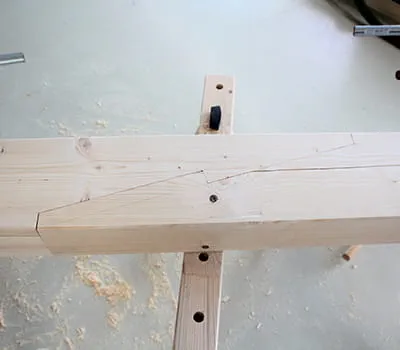

    • Creation

      The two parts can now be made.

      +
      The two parts can now be made

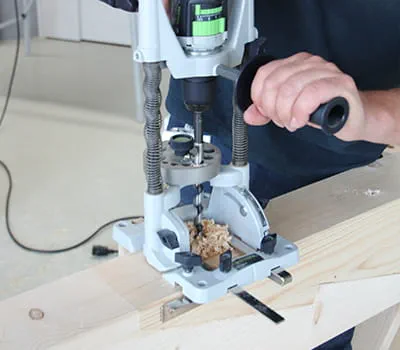

    • Use the drill stand to make a bore hole for the screw-bolt-joint

      The necessary bore holes can be made using the clamped cordless drill in a carpentry drill stand.

      +
      Use the drill stand to make a bore hole for the screw-bolt-joint
    • Second drilling stage

      A Forstner drill with a depth limiter is also used to drill the bore holes for the washers.

      +
      The bore holes are drilled for the washers

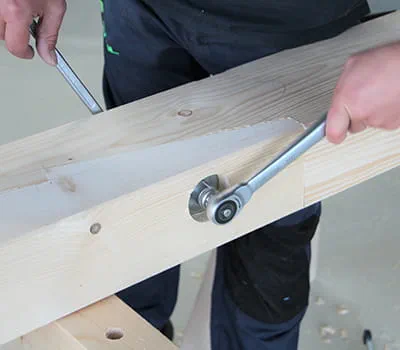

    • Fitting the threaded bolts

      The threaded bolts can now be fitted and tightened.

      +
      Fitting the threaded bolts

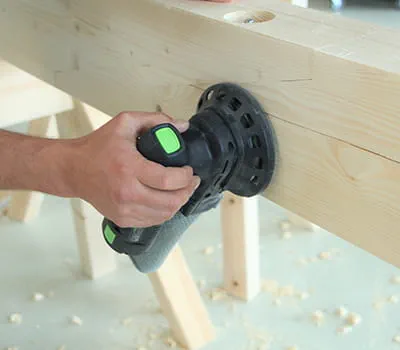

    • Removing the markings

      As an option, the wood and longitudinal joint machining areas may be sanded with a cordless sander to remove pencil markings.

      +
      Sanding machining areas with a cordless sander
    • Finished joint

      The longitudinal joint provides a result which is attractive and robust for the beams.

      +
      Finished joint
