The decorative routing of grooves to give furniture fronts a framed look

The decorative routing of a groove into the front of any wooden furniture is the perfect way to create a framed look. This guide explains how to determine which tool to use for routing these grooves and which method to choose to subsequently round off the outer edges of the work piece. It explains how to set up the router and which dimensions must be taken into account.

Please note: These illustrated guides are not intended to replace operating manuals or safety instructions!

Description

Alongside classic frame designs that can be created quickly and easily using a plane cutter and counterprofile cutter, users can also profile laminated boards and rout decorative grooves into wood. This gives the impression of a counterprofile design. This makes it easy for carpenters to upvalue materials that are very easy to process, such as laminated boards, in order to design furniture front sections, e.g. of kitchen cabinets or wall units. This creates a "cassette" or "frame" design in the front sections.

Producing a frame design in furniture front sections involves three distinct work steps. The first step is vertical routing and the second step is horizontal routing. The third work step involves rounding off the outer edges after routing

If you only want to carry out vertical routing, you can of course skip the second step.

Tools/accessories

The following tools and accessories are recommended for use in this application example:

guide rail adapter FS-OF 1010

for OF 900, OF 1000, OF 1010, OF 1010 R, KF
Mobile dust extractor CTM 36 EI AC 230V CLEANTEC

Unobstructed filter thanks to the AUTOCLEAN automatic cleaning function.

Alternative tools

The following tools and accessories are recommended as an alternative:

Router OF 1400 EQ-Plus 110V

Power and ease of operation in perfect harmony.
Router OF 2200 EB-Plus 110V

The power pack with enormous torque.

Preparation/set-up

Carry out the following preparatory work in order to rout a frame design:

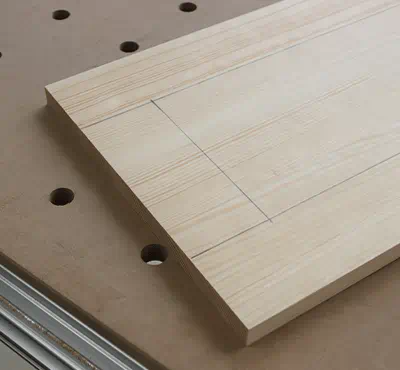

For all routing operations, mark the respective cutter centre line and its limitation.

+
Now align the router. Proceed as follows:

Fit the router with the profile cutter without bearing guide; the router shank should be inserted in the chuck to at least the minimum clamping depth in order to ensure the cutter is held firmly.

Mount the guide rail adapter on the router so that it can be guided on the guide rail.

Place the router on the guide rail for adjustment.

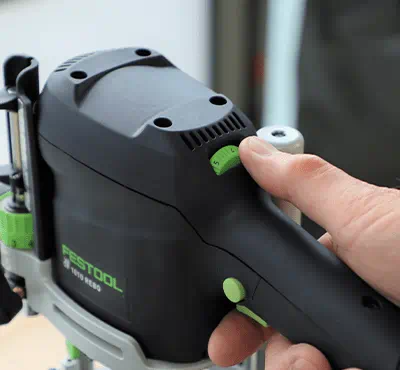

Set the speed level according to the type of wood, cutter and cutter diameter (please obtain the values from the corresponding table in the Operating Instructions).

+
Clamp the workpiece to be routed on the multifunction table with the help of the clamping elements or clamp clips so that first one of the vertical lines can be processed. The distance x of the marked line to the edge of the guide rail depends on the cutter diameter and is calculated as follows:

x = cutter diameter in mm / 2 + 2 mm

For a 42 mm profile cutter, this gives a distance of 23 mm.

+

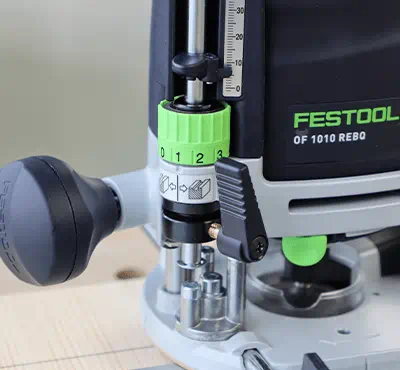

Set a routing depth of 8 mm for the profile cutter. Handling of the routing depth setting will not be explained in detail at this point. It is described in the Operating Instructions.

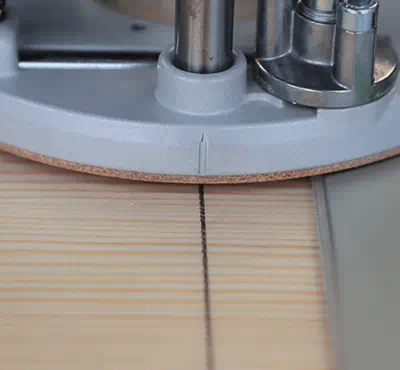

Set the clearance of the router to the rail. When doing this, use the marked lines and the notches in the router table that mark the middle of the cutter precisely.

+

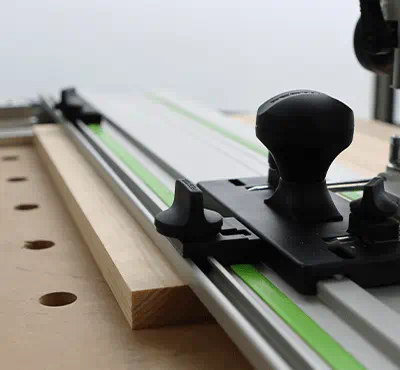

Now guide the tool to the first limitation line and position a guide limiter there. Guide the tool to the end of the milling groove and position the second guide limiter there. Using the limit line marked earlier and the millimetre display on the support, these settings can be adjusted incredibly precisely.

The guide limiter is not necessary for vertical routing.

+

Procedure

Carry out routing as follows:

Set the router down correctly on the rail.

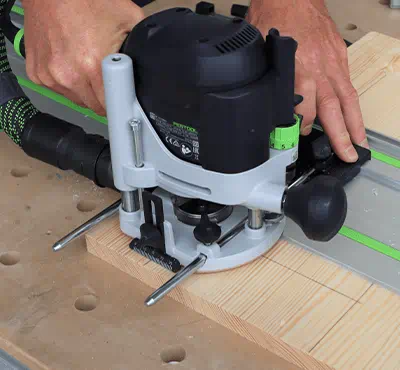

Now switch on the router and plunge into the workpiece. When switching on the router, always ensure that the cutter does not touch the workpiece so that the router can start up freely.

Move the router along the rail, making sure that movement is not too slow because the cutter could otherwise burn the material.

When routing is complete, move the cutter out of the workpiece and then switch it off.

Only take the router down from the rail when the router has come to a standstill.

+

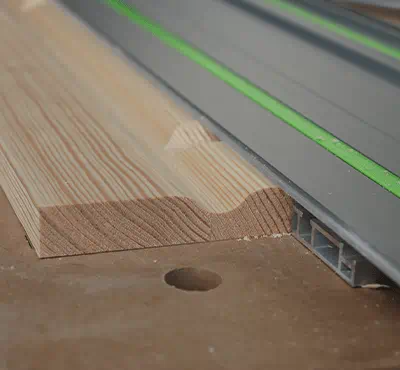

If the vertical cuts are continuous, the guide limiter can be omitted. With the router running, simply plunge into the workpiece and exit the workpiece again at the end of the cut. Otherwise, the same procedure for vertical routing applies as for horizontal routing.

+

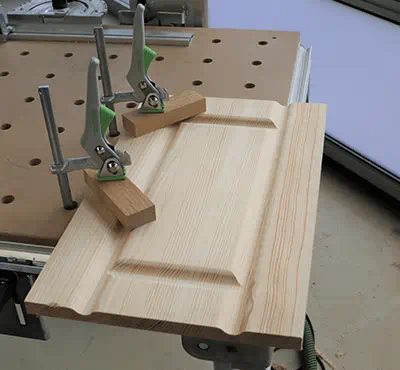

For the third work step – rounding the outside edges of the workpiece – the roundover cutter with bearing guide must be clamped in the router.

For this work step, the wood is clamped on the multifunction table so that the user can access two edges.

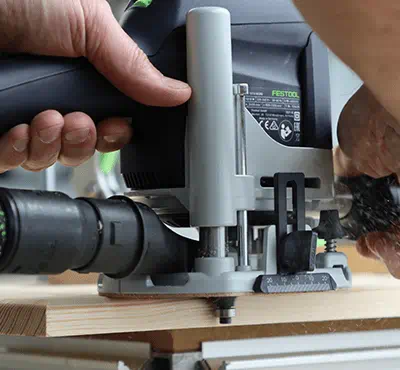

When adjusting the cutter depth setting, the screw on the bearing guide can be placed on the workpiece and used to set the zero setting. Now set a routing depth for the groove of 18 mm.

+
When rounding over the outer edges of the workpiece, the end grain edges of the workpiece are processed first. Then the longitudinal wood edges of the workpiece are processed.

+
