Sawing cornices and ceiling beading
Description
With the end of the end of the architectural period of modernism in the last quarter of the twentieth century, there was a revival of interest in ornamentation and stucco elements - not just for purposes of historical conservation, but also due to trends in contemporary design and current requirements for interior ambience. Modern stucco elements made from plastic have been adapted to reflect the design of the older, established plaster decoration and are complemented by modern patterns.
Modern ceiling strips can be mitre cut and mounted without difficulty as stucco elements. Painters and plasterers cut the mitre into the profile strips with a mitre box and a saw. Unfortunately, this work tends to be imprecise, complicated and time-consuming.
With the Festool KAPEX KS 120 compound mitre saw and its trimming attachments, mitre cutting in ceiling strip is no problem - and can be done in a clean, precise and most importantly economical manner.
The set version includes both trimming attachments with adjustable stops, the MFT KAPEX multifunction table, mounting kit, extension table with crown stops and teh correct saw blade (W 60).
Tools/accessories
Procedure
-

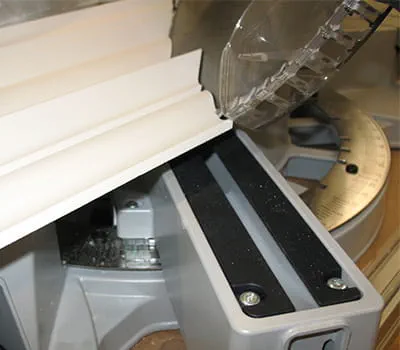

The KAPEX sliding compound mitre saw can be used to produce four different cross-sections, depending on the application.
The maximum dimensions for the profiles are limited to:- 88 x 305 mm with height dimension at 90° x width dimension at 90°
- 88 x 215 mm with height dimension at 90° x width dimension at 90° with height dimension at 90° x width dimension at 45°
- 55 x 305 mm with height dimension at 45° x width dimension at 90°
- 33/55 x 215 mm with height dimension at 45° x width dimension at 45°
-
- Set the speed to level 6.
- Connect the suction hose to the KAPEX and the mobile dust extractor.
- Only when using an M-extractor: Set the suction hose diameter.

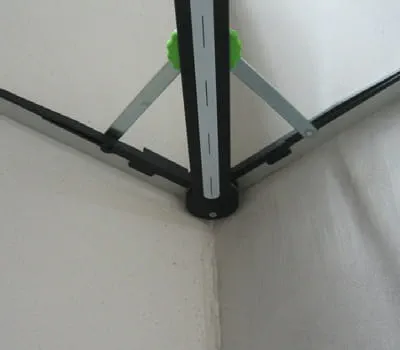

Using the bevel provided, the corner angles can be measured quickly, allowing you to cut the profiles along the line bisecting the corner angle. The image shows the reduction of the corner angle of an internal corner.
-

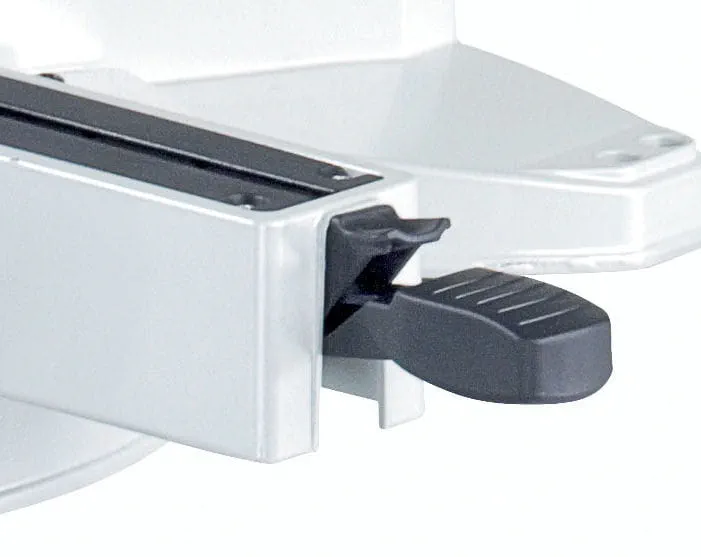

Open the clamp lever for the mitre angle on the saw table (horizontal).
Push the locking lever for the pre-set horizontal mitre angle downwards, align the table with the scribe mark on the bevel and push the clamp lever down again to secure it.
-
To do this, the dual-line laser integrated in the KAPEX must be switched on and aligned so that it is parallel to the printed scribe mark on the bevel. You can then begin to saw the cornices on the mitre.
-

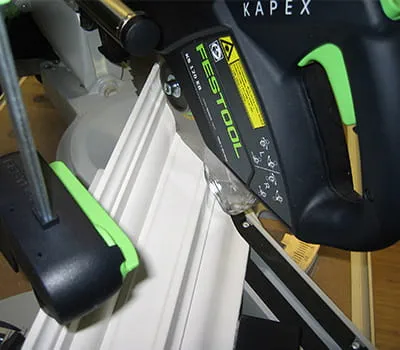

Place the cornice against the workpiece stop and position it using the stop bar on the extension table. Secure the beading using the workpiece clamp before cutting. For proper positioning, the stops need to be brought very close to the saw blade.
-
Cut the matching angle on the adjoining strip using the same procedure. Once you have finished cutting the cornice, the strips can be stuck together and reworked.
-
